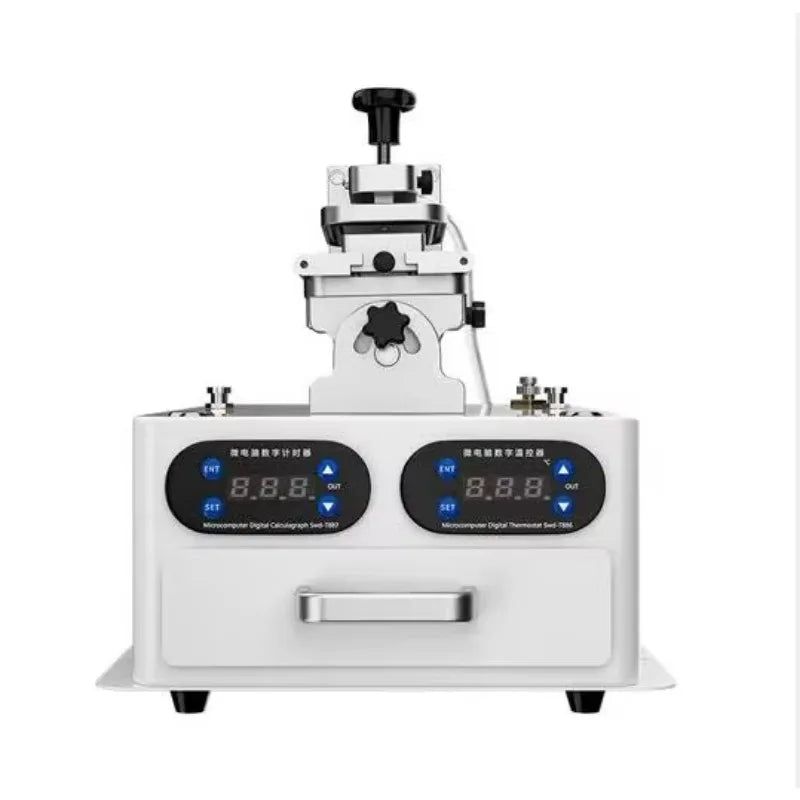

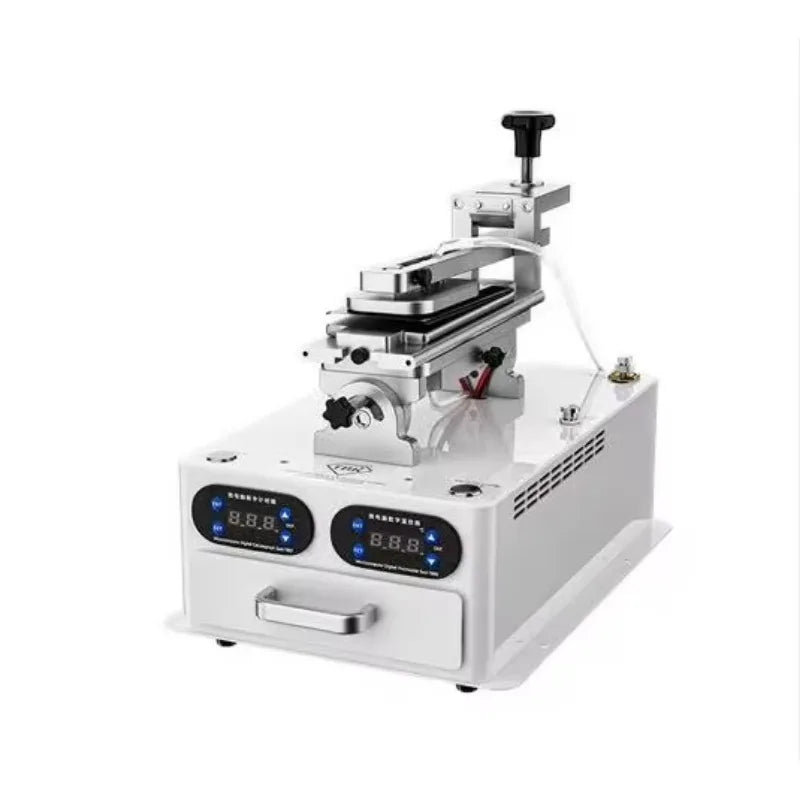

TBK 258S Multifunction LCD Screen Separator & UV Curing Machine

The TBK 258S is an all-in-one workstation engineered to streamline smartphone refurbishment. Combining precision heated separation, powerful vacuum adsorption, and a dedicated 395nm UV curing chamber, it eliminates benchtop clutter and accelerates screen dismantling and OCA curing workflows.

Key Features & Benefits

• Multifunctional 3-in-1 Design: Seamlessly switch between heated screen separation, strong vacuum clamping, and post-repair UV adhesive curing without changing workstations.

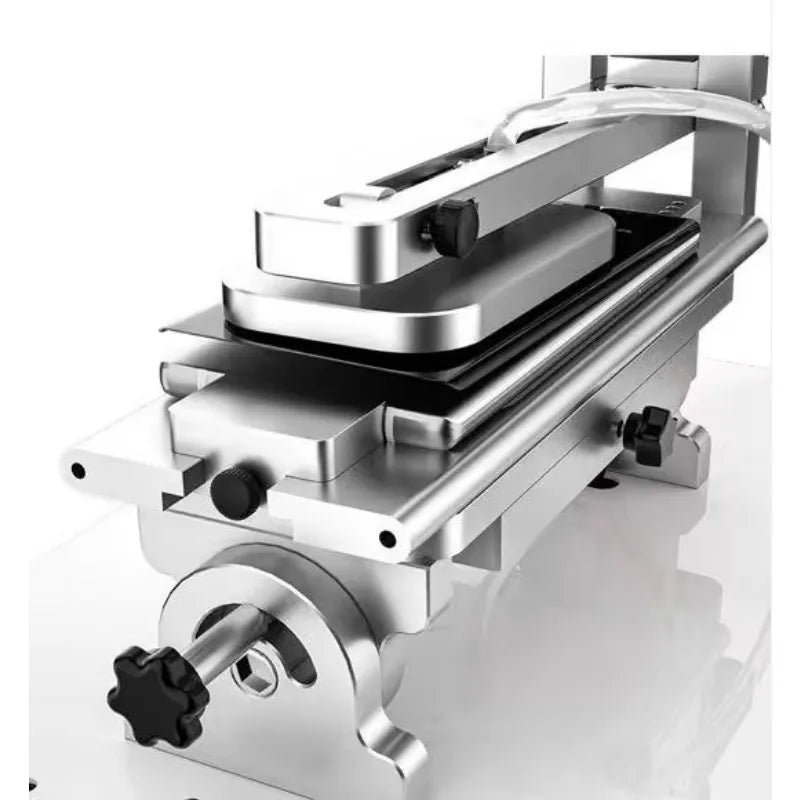

• 360° Multi-Angle Rotation: Freely adjust and rotate the platform to find the optimal cutting and separation angle, reducing strain and preventing ribbon cable damage.
• Consistent Uniform Heating: High-efficiency 400W heating element provides rapid, even heat across the 21 × 7.5 cm plate to soften adhesives cleanly without scorching sensitive LCDs.

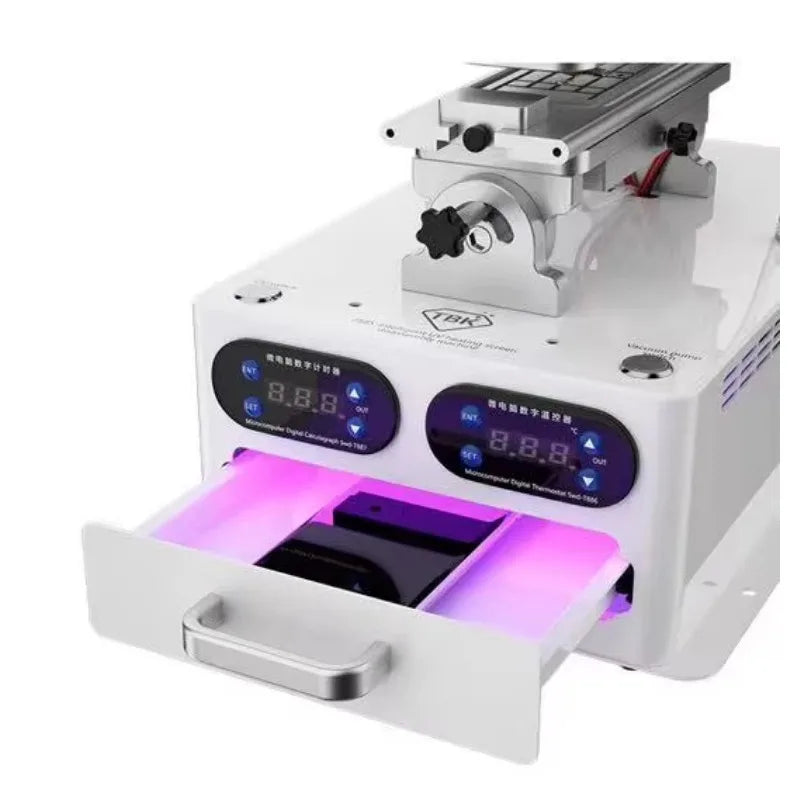

• Integrated UV Curing Chamber: Built-in 20 × 15 cm UV box equipped with 395nm wavelength light quickly cures OCA optical adhesives and UV curable glues in minutes.

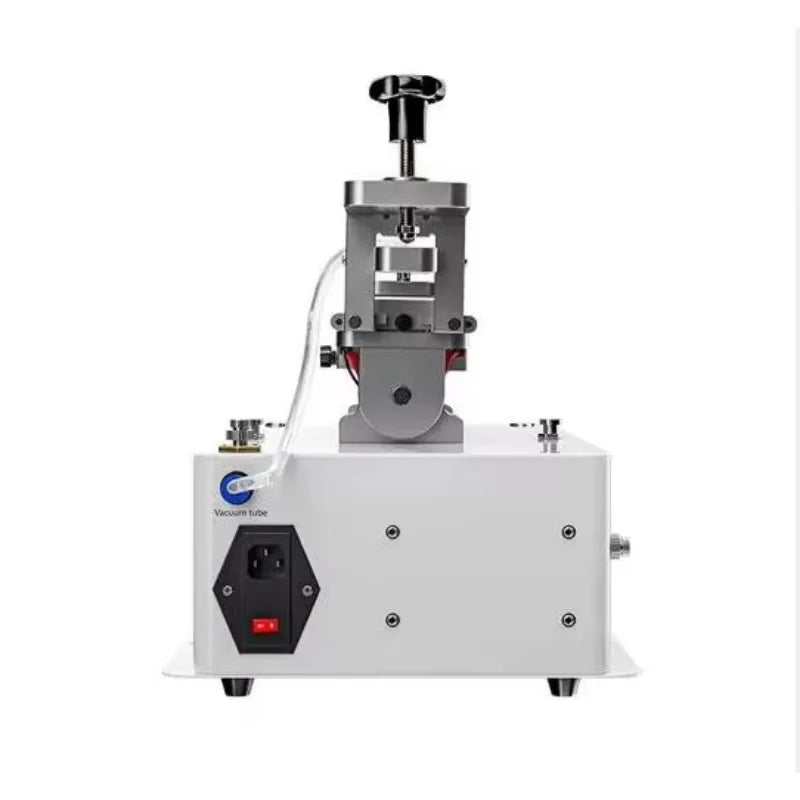

• Built-in Vacuum Suction: Secures mobile screens firmly in place up to 7 inches, eliminating mechanical clamp slippage and screen scratches during disassembly.

Technical Specifications

• Brand & Model: TBK 258S
• Power: 400W
• Voltage Options: 110V / 220V
• Compatible Screen Sizes: Up to 7 inches
• Heating Plate Dimensions: 21 × 7.5 cm
• UV Curing Chamber: 20 × 15 cm (395nm wavelength)
• Machine Dimensions: 32 × 23 × 30 cm (Weight: 6.8 kg)

What's Included

• 1 × TBK 258S Multifunction Screen Separator & UV Machine
• 1 × Power Cable (110V or 220V per selected variant)
• 1 × Heat-resistant Silicone Pad
• 1 × User Manual
