Direct-heating stencil and magnetic platform system designed for AMD B450 motherboard southbridge chipset rework.
Application and Selection
Compatible with AMD B450 chipset series layouts including 218-0891011, 218-0891010, 218-0891009, and 218-0891008. The stencil, positioning plate, and magnetic base are offered as standalone items or as a complete kit; verify your selected configuration below before placing your order.
Product Details

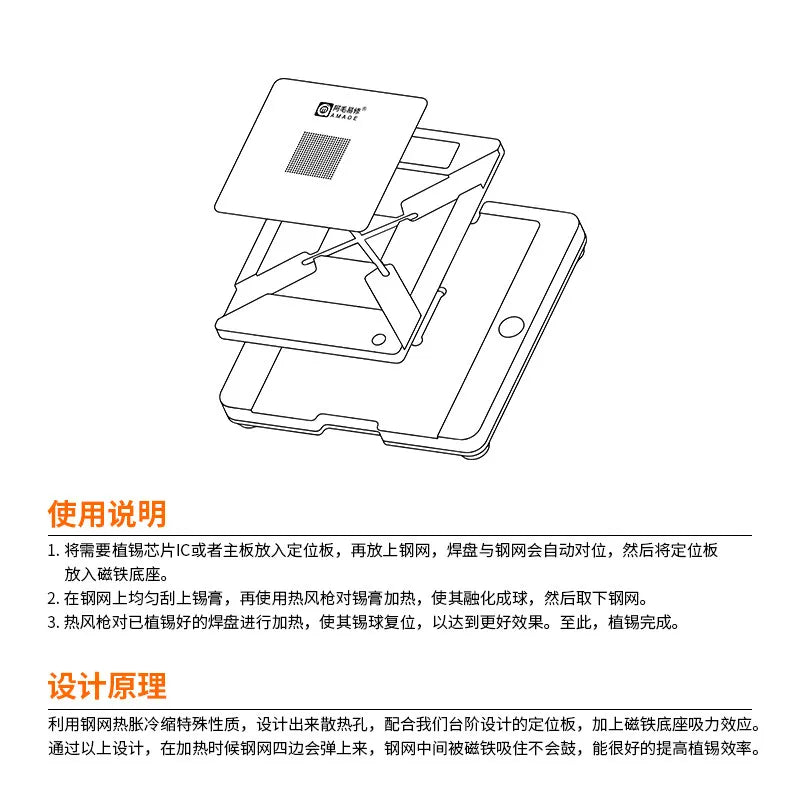

The Amaoe AMD B450 Magnetic BGA Reballing Platform delivers micrometer-level alignment and reliable magnetic clamping for PC motherboard southbridge and chipset repair. Constructed with high-temperature synthetic stone fixtures and precision laser-etched stainless steel stencils, it provides stable tin planting and prevents stencil bulging or IC displacement during direct hot-air soldering.
Key Features
- Magnetic Precision Clamping: High-strength magnetic base firmly holds the positioning plate and stencil in place, eliminating shifting during soldering.
- Heat-Resistant Synthetic Stone: Composite synthetic stone fixture withstands intense hot-air rework temperatures without warping, degrading, or transferring excessive heat.
- Laser-Cut Direct-Heating Stencil: High-grade stainless steel stencil with micro-radiused square apertures facilitates clean solder paste deposition and effortless ball release.

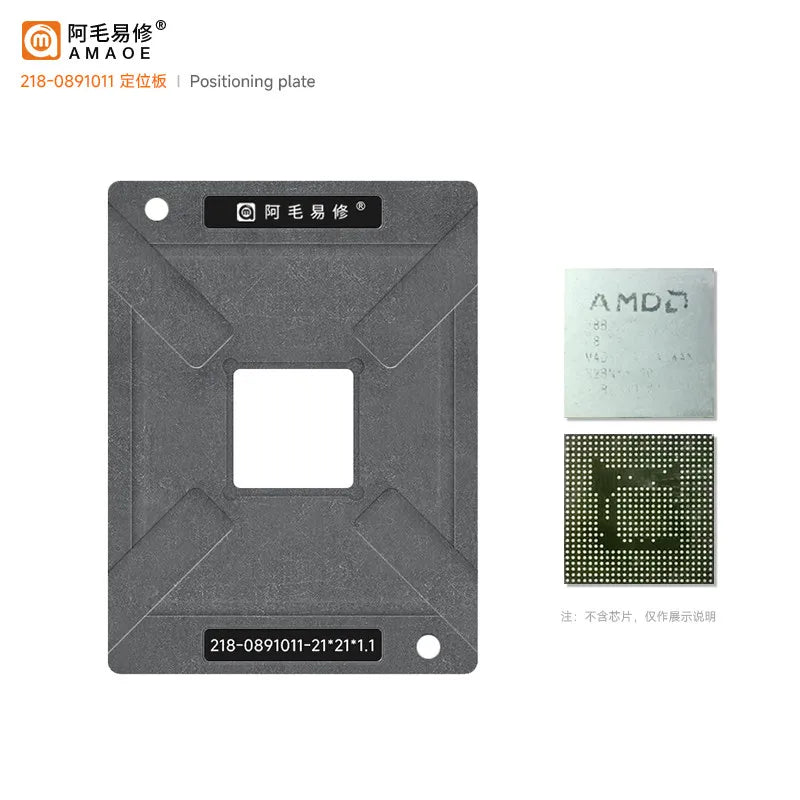

- Precise Chip Positioning: Dedicated recess accommodates AMD B450 package dimensions, ensuring exact pin-to-pad alignment.
- Anti-Bulging Thermal Vents: Stencil design incorporates thermal expansion relief channels to maintain planarity under direct heating.
Configuration & Package Options

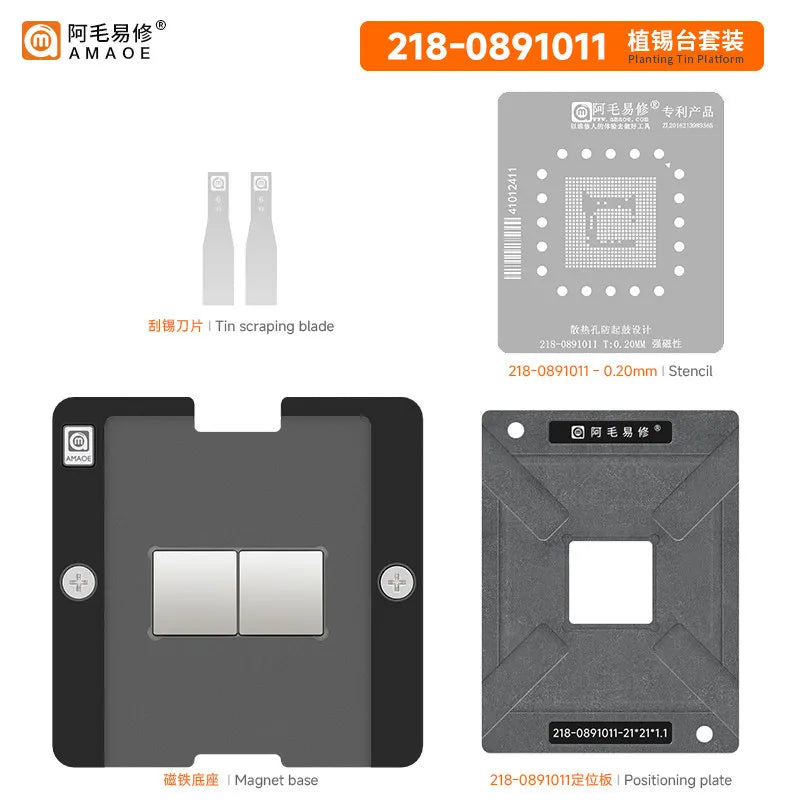

- Full Set: Includes the magnetic base, dedicated AMD B450 positioning plate, and direct-heating BGA stencil.

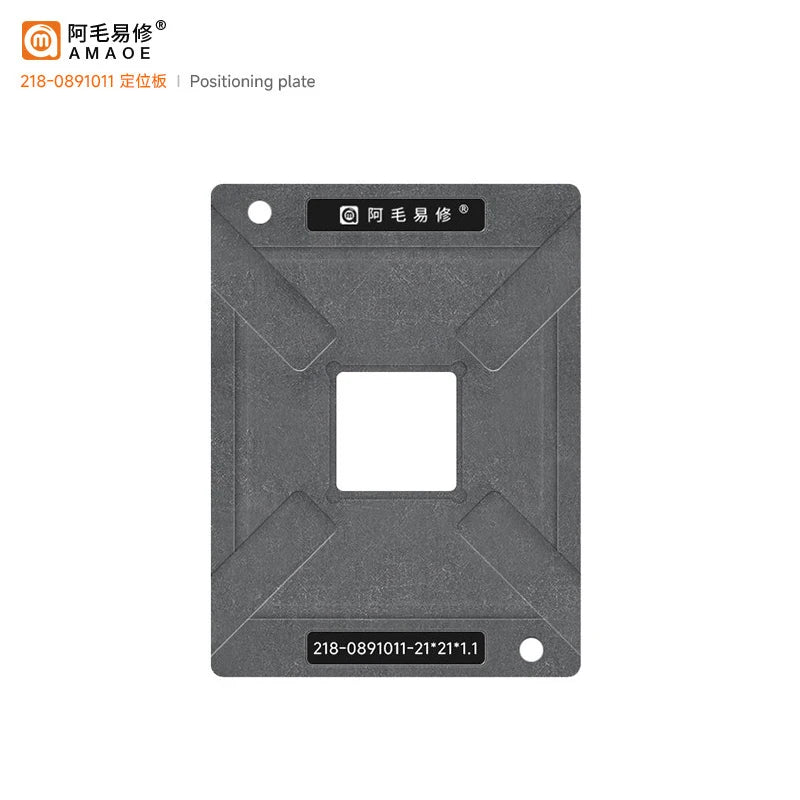

- Positioning Plate: Synthetic stone positioning plate specifically cut for AMD B450 chipsets.
- BGA Stencil: High-precision 0.12mm laser-cut stainless steel reballing mesh only.

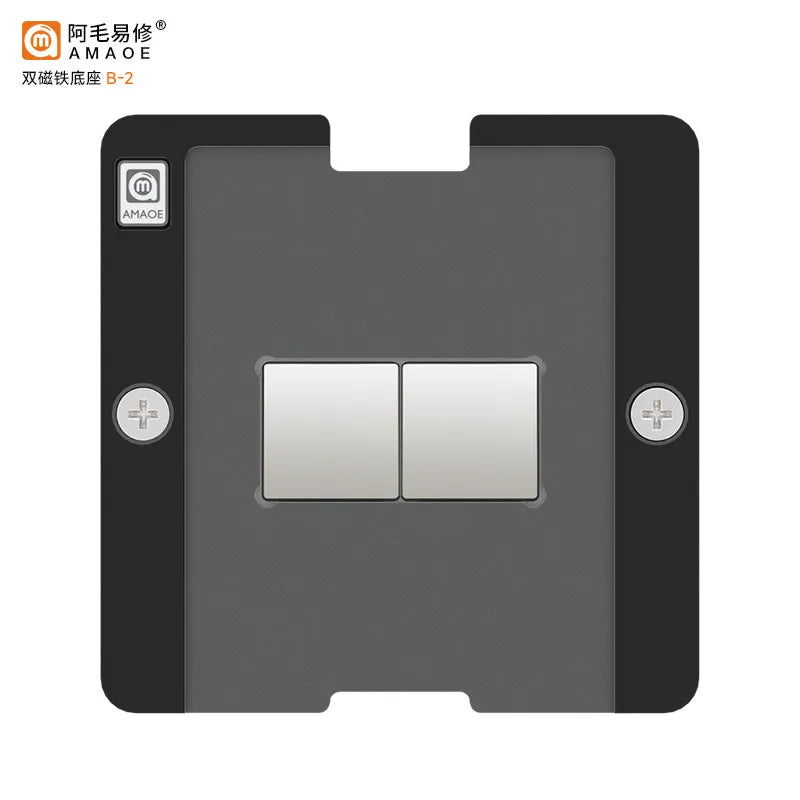

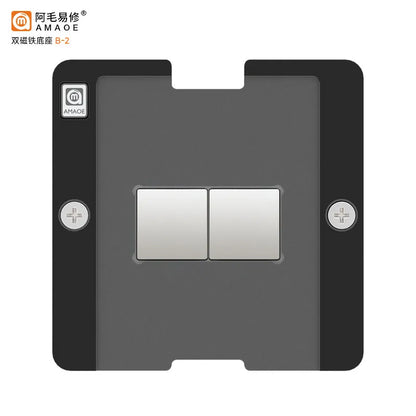

- Magnetic Base: Heavy-duty magnetic fixture platform base only.
Specifications & Compatibility
- Brand: Amaoe
- Compatible Chipsets: AMD B450 Series Southbridge (218-0891011, 218-0891010, 218-0891009, 218-0891008)
- Materials: Synthetic Stone & High-Grade Japanese Stainless Steel
- Application: PC motherboard southbridge rework, BGA chip reballing, and solder ball planting
