AMAOE ODNX02-A2 BGA Reballing Platform Kit for Nintendo Switch CPU

The AMAOE ODNX02-A2 BGA Reballing Platform Kit is an industrial-grade magnetic tin-planting rework station engineered specifically for the Nintendo Switch console CPU processor (ODNX02-A2). Designed for game console motherboard repair, chip-level desoldering, and APU replacement, it combines thermal-insulating synthetic stone and strong magnetic clamping for micron-precise solder ball alignment.

Key Features

• Custom ODNX02-A2 CPU Fit: Precision CNC-machined to match the exact dimensions and ball array of the Nintendo Switch CPU processor (ODNX02-A2).
• Strong Magnetic Clamping: Integrated neodymium magnets lock the positioning board and stencil firmly in place to eliminate shift during solder paste application.
• Anti-Bulging Direct-Heating Stencil: High-precision laser-cut apertures prevent steel mesh deformation and solder bridging under direct hot air heating.
• Thermal-Insulating Synthetic Stone: High-temperature composite material prevents heat dissipation and protects delicate CPU circuitry from thermal shock.
• Modular Workbench Setup: Purchase individual components (ODNX02-A2 stencil, positioning board, magnetic base) or a complete full set based on your bench requirements.

Applications

• Nintendo Switch Motherboard Repair: Essential for repairing Switch blue screen (BSOD), orange screen, no power, and APU cold solder joint issues.
• CPU & APU Replacement / Reballing: Ideal for desoldering, cleaning, reballing, and re-soldering the ODNX02-A2 processor.
• Game Console Repair Workshops: Professional-grade micro-soldering tooling for console repair technicians and electronics workshops.

Specifications

• Brand: AMAOE
• Compatible Device: Nintendo Switch Console Motherboard
• Compatible Processor: Switch CPU (ODNX02-A2)
• Product Type: BGA Reballing Platforms
• Material: High-Temperature Synthetic Stone & Magnetic Stainless Steel Base
• Stencil Thickness: Direct-Heating Laser-Cut Mesh

Configuration & Selection Guidance

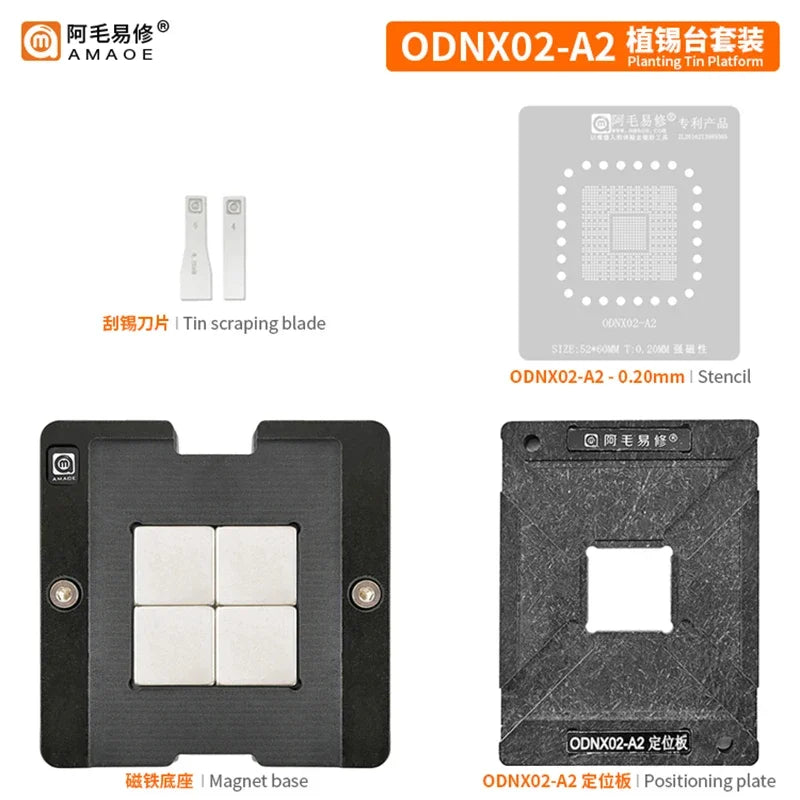

• Full Set: Includes 1x universal magnetic base, 1x ODNX02-A2 synthetic stone positioning board, and 1x dedicated direct-heating BGA stencil.

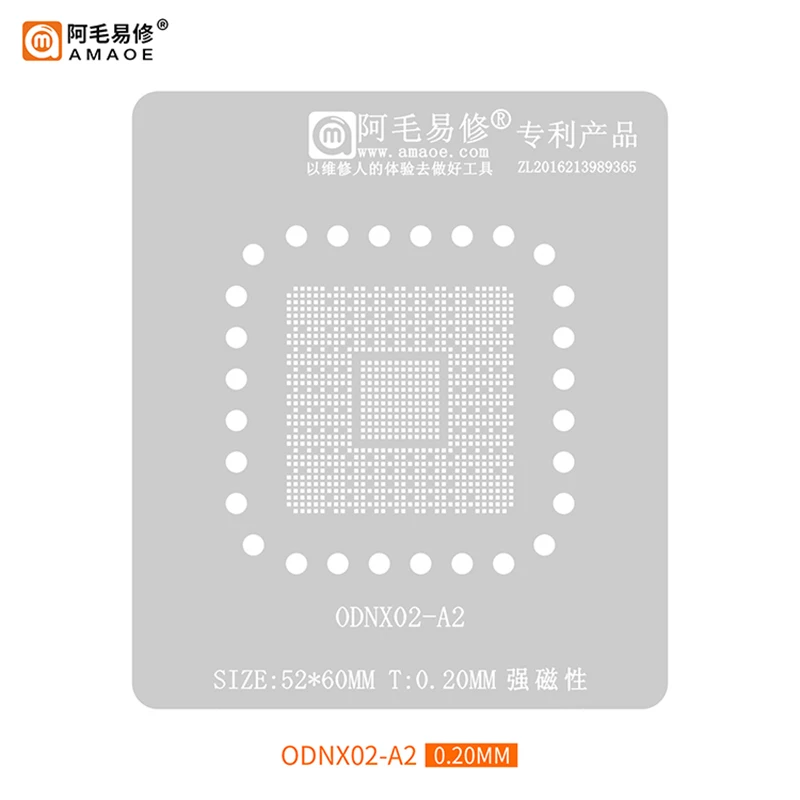

• ODNX02-A2 Stencil: Includes 1x dedicated direct-heating BGA planting stencil only.

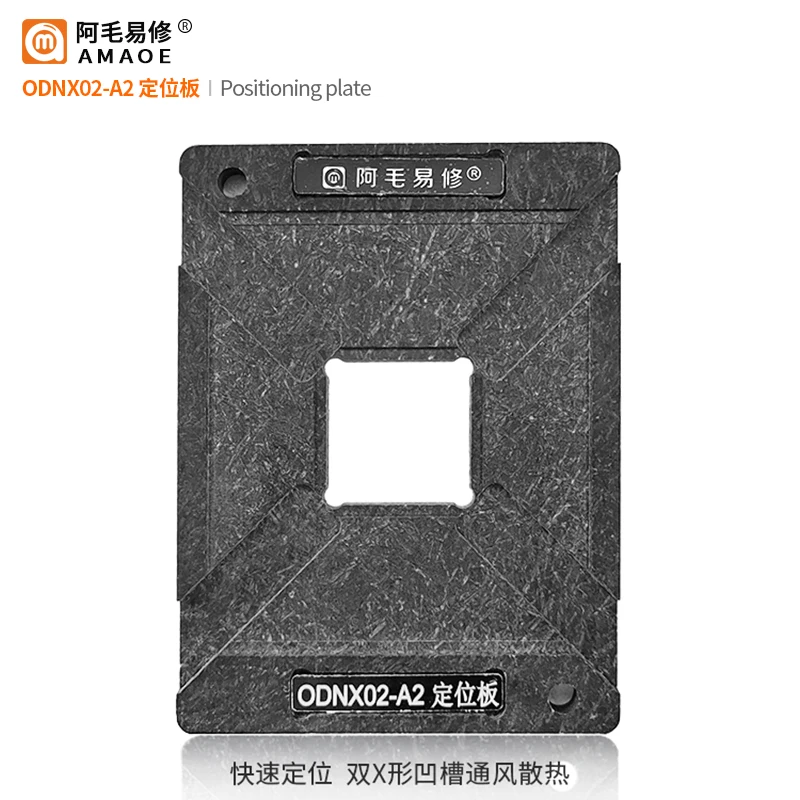

• Position Board: Includes 1x dedicated synthetic stone positioning board only.

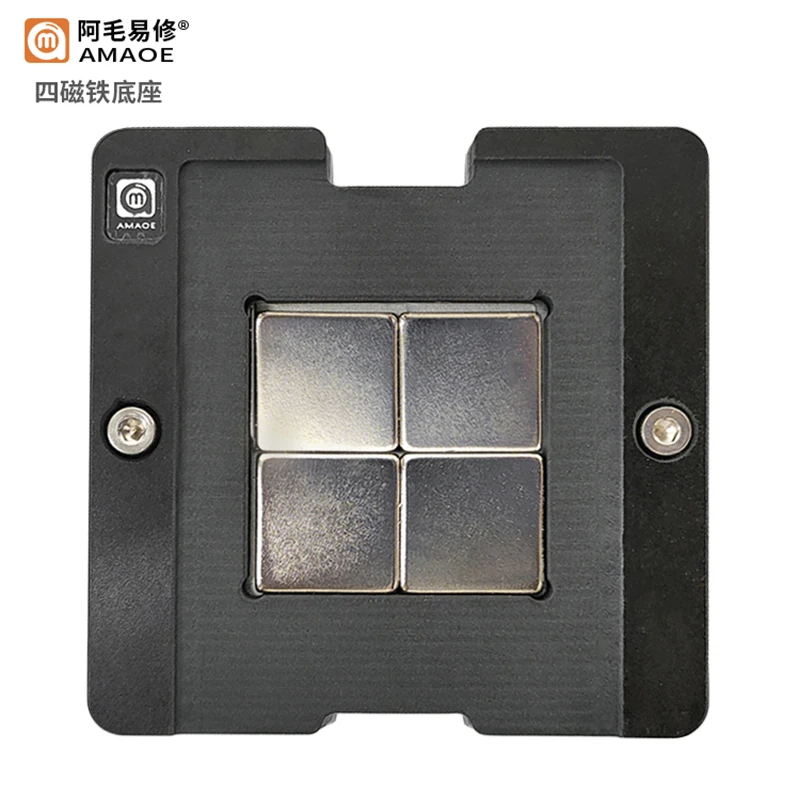

• Magnetic Base: Includes 1x universal magnetic base fixture only.
• Note: Please confirm your console motherboard chip model (ODNX02-A2) before ordering.

Package Includes

• 1 x Selected AMAOE ODNX02-A2 Reballing Platform Component or Full Set (per chosen variant)
