AMAOE NVIDIA RTX 3080 / 3090 GA102 Magnetic BGA Reballing Platform Kit

The AMAOE NVIDIA RTX 3080 / 3090 GA102 Magnetic BGA Reballing Platform Kit is specifically engineered for professional GPU micro-soldering, tin-ball planting, and core rework on NVIDIA GeForce RTX 3080, RTX 3090, RTX 3080 Ti, and RTX 3090 Ti graphics cards featuring the GA102 processor. Utilizing a strong magnetic clamping base and high-temperature resistant positioning fixtures, it eliminates GPU core displacement and ensures uniform solder ball heights across massive ball grids.

Key Features

• High-Strength Magnetic Clamping: Powerful magnetic base locks the positioning plate and stencil firmly in position, preventing movement during hot-air heating.
• Precision Laser Square Apertures: Engineered for GA102 BGA footprints to ensure consistent solder ball formation and effortless paste release without bridging.
• Thermal Warping & Bulge Resistance: Constructed from premium heat-resistant steel designed to withstand direct hot-air soldering on large-die GPUs.
• Modular Configuration Options: Choose between the Stencil, Positioning Plate, Magnetic Base, or the Complete Full Set depending on your workshop requirements.

Specifications & Compatibility

• Brand: AMAOE
• Target GPU: NVIDIA GA102 Core (GeForce RTX 3080, RTX 3080 Ti, RTX 3090, RTX 3090 Ti)
• Platform Type: Magnetic Base + Heat-Resistant Positioning Plate + Direct-Heating Stencil
• Application: BGA Direct Heating, Solder Paste Planting, Graphics Card GPU Core Rework

Available Configurations

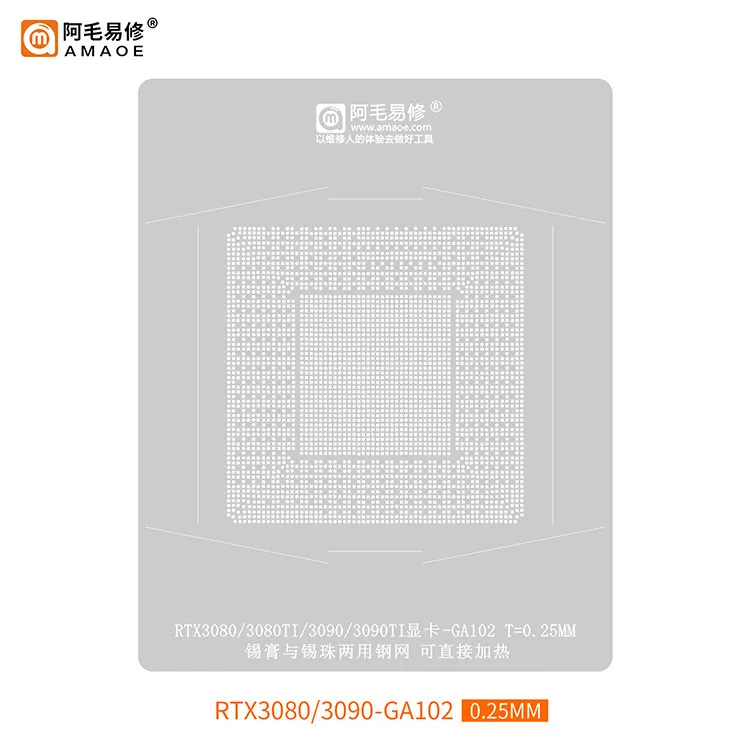

• Stencil: Dedicated precision direct-heating BGA stencil for NVIDIA GA102 GPU.

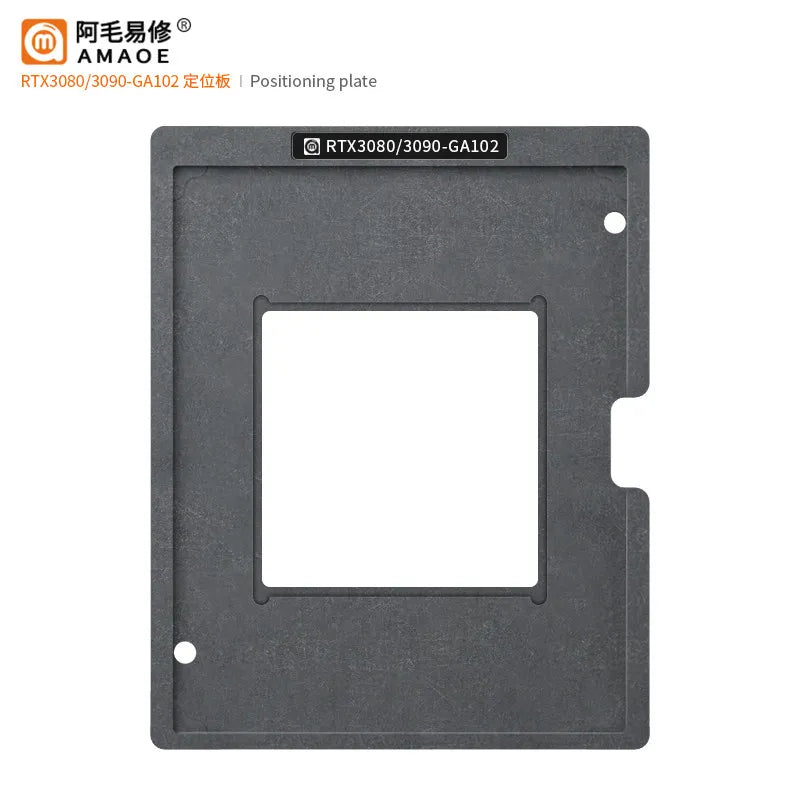

• Positioning Plate: High-temperature positioning guide for exact GA102 chip seating.

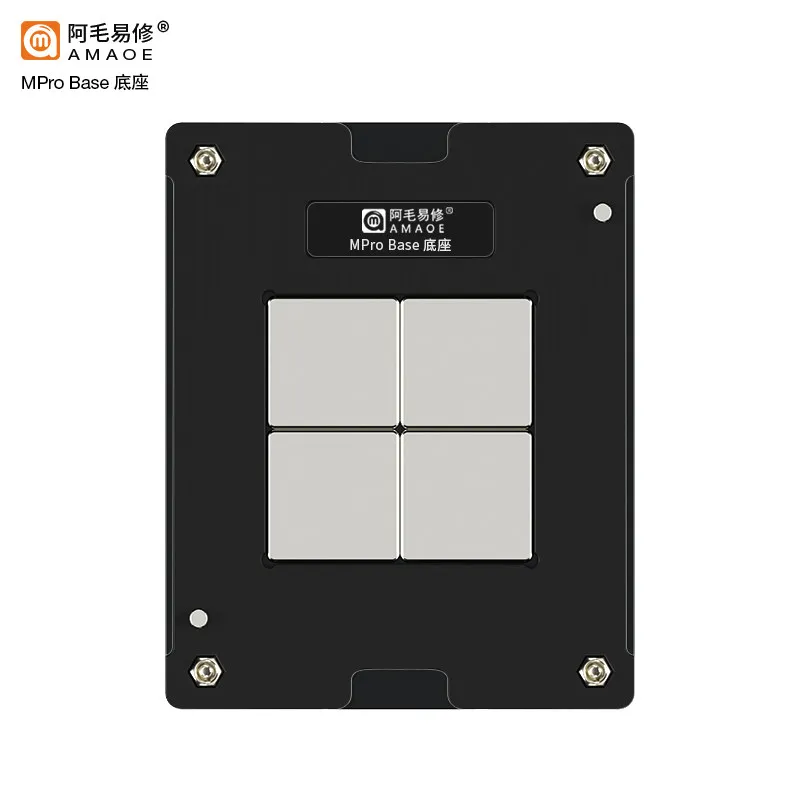

• Magnetic Base: Heavy-duty magnetic platform base.

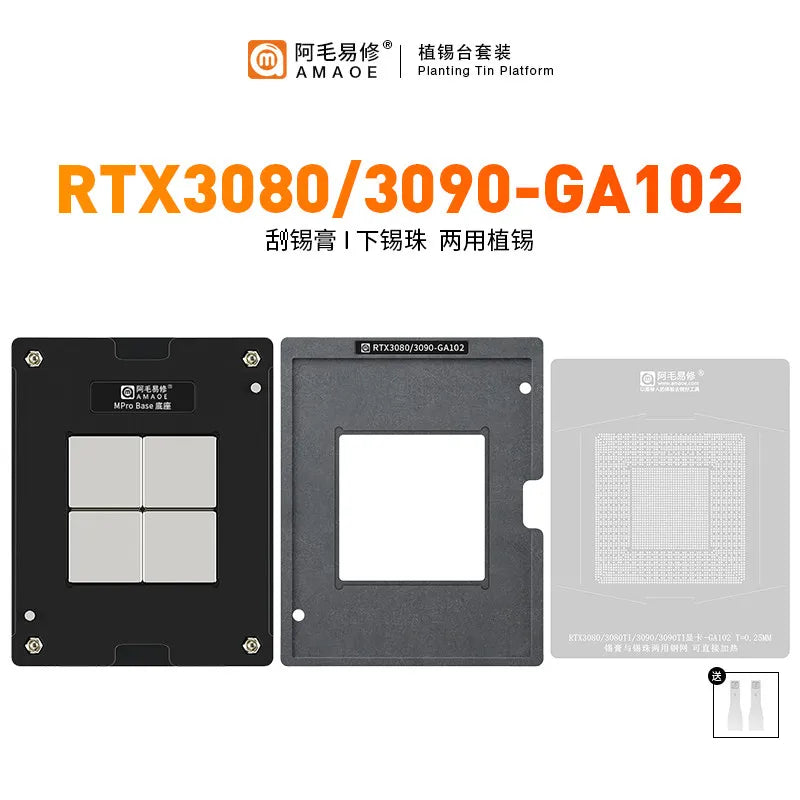

• Full Set: Comprehensive toolkit including Magnetic Base, Positioning Plate, and Stencil.

Application & Selection

Verify your graphics card GPU marking (GA102-200, GA102-250, GA102-300, GA102-350, etc.) before rework. Select individual replacement parts or the complete full set.
