AMAOE SR40F A1990 FCH BGA Reballing Platform

The AMAOE SR40F A1990 FCH BGA Reballing Platform is a high-precision tin planting fixture designed for chip-level rework on Apple MacBook Pro logic boards. Engineered specifically for the SR40F Platform Controller Hub (FCH/PCH) and QMS380 chipsets, this magnetic platform ensures accurate alignment, direct heat resistance, and reliable solder ball formation during micro-soldering repairs.

Key Features

• Magnetic Precision Positioning: Strong magnetic base securely locks the positioning plate and stencil in place, preventing misalignment during solder paste application.
• Direct Heat Resistant Stencil: Laser-cut Japanese stainless steel stencil with chamfered square apertures withstands direct hot air heating without warping or deformation.
• Efficient Solder Ball Formation: Rounded square openings allow smooth paste release and effortless stencil detachment after reballing.
• Durable Synthetic Stone Base: Heat-insulating, anti-static base protects delicate motherboard components and resists high soldering temperatures.

Specifications

• Brand: AMAOE
• Model: SR40F / A1990 FCH BGA Reballing Platform
• Application: BGA Tin Planting / Motherboard Chip Rework
• Compatible Chipset: Intel SR40F FCH/PCH, QMS380
• Compatible Device: MacBook Pro 15" A1990 Logic Board
• Material: High-Grade Stainless Steel & Synthetic Stone / Alloy Base

Configuration & Selection Guide

Please confirm your chip model and select the required configuration from the options below:

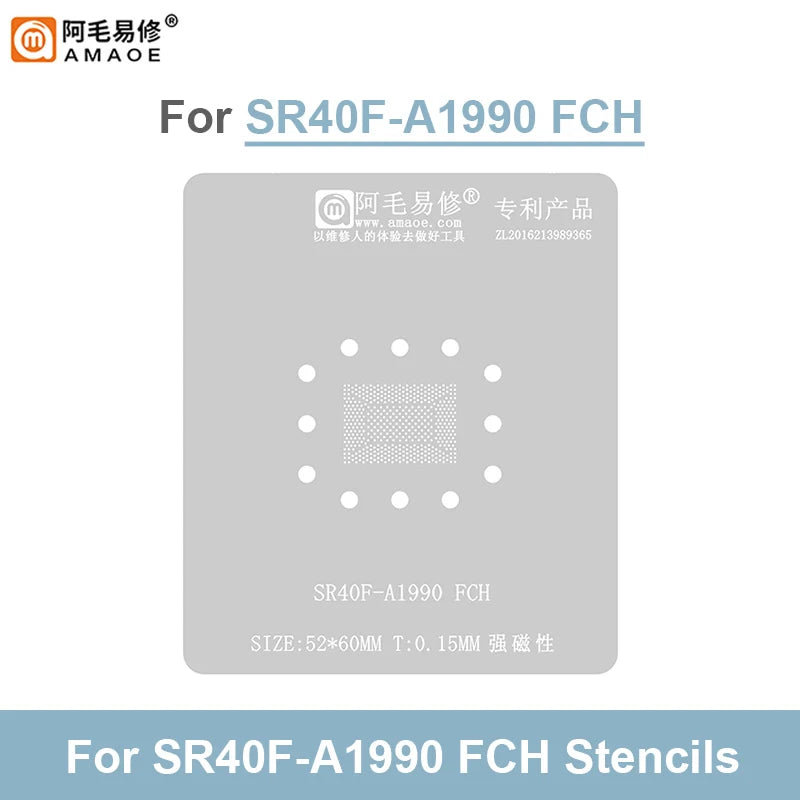

• Stencil: 1x Precision laser-cut BGA reballing steel stencil.

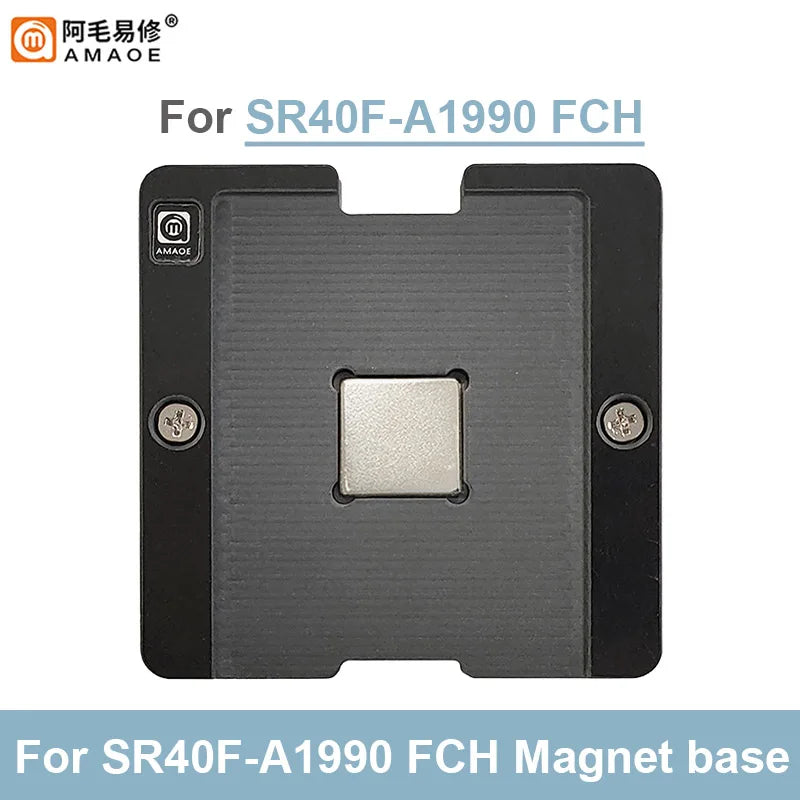

• Base: 1x Magnetic synthetic stone reballing base.

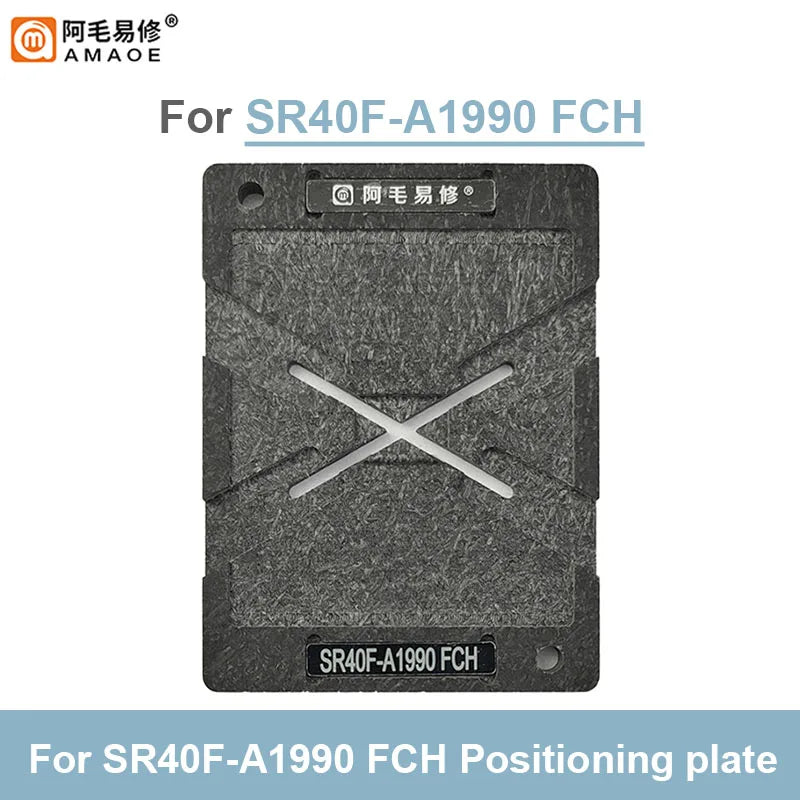

• Plate: 1x Dedicated positioning plate for SR40F chip alignment.

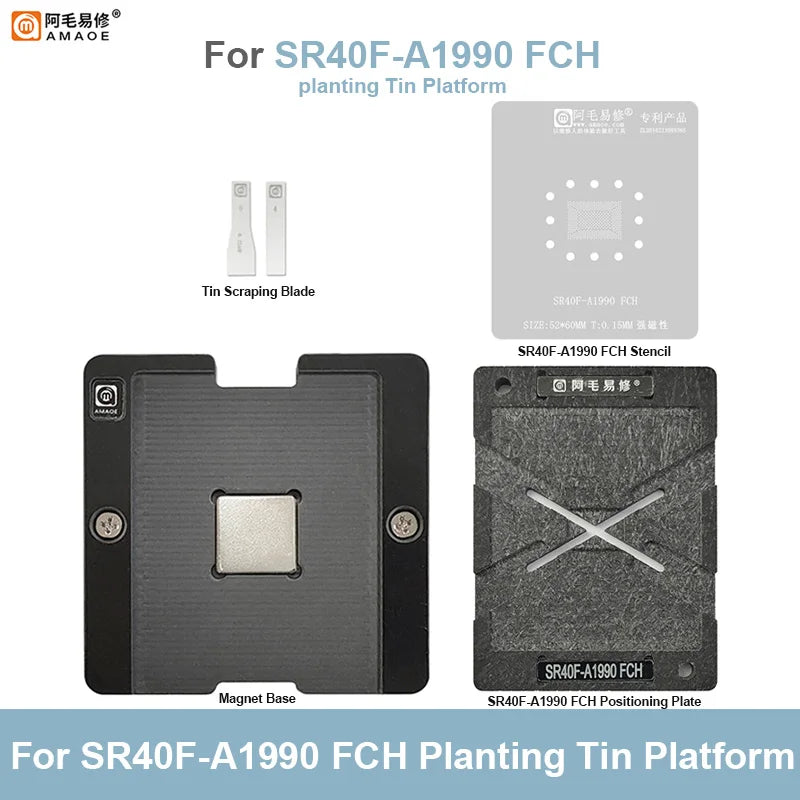

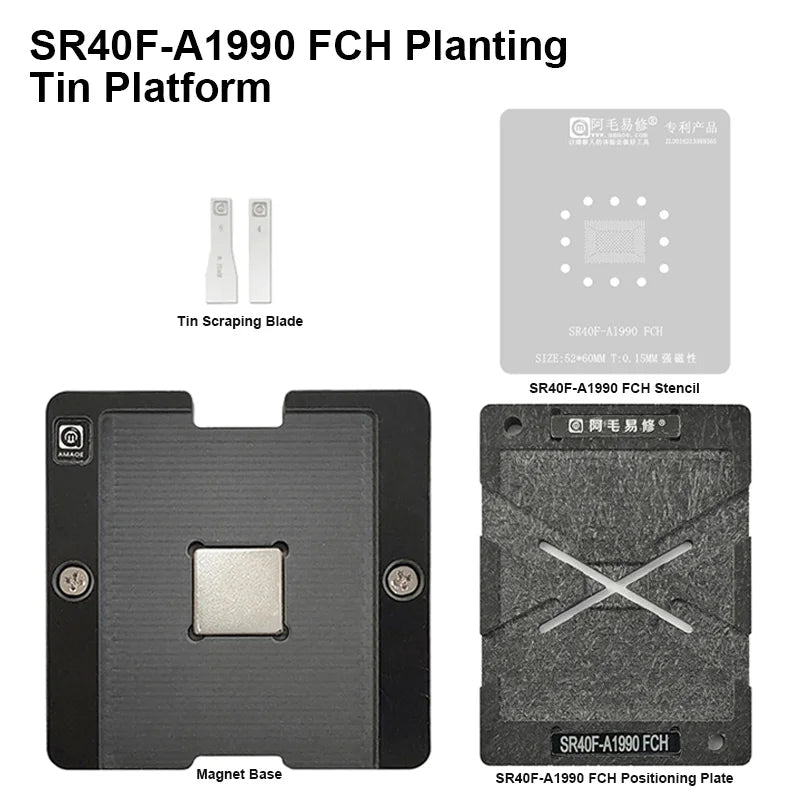

• Full Set: Complete kit including magnetic base, positioning plate, and BGA reballing stencil.
