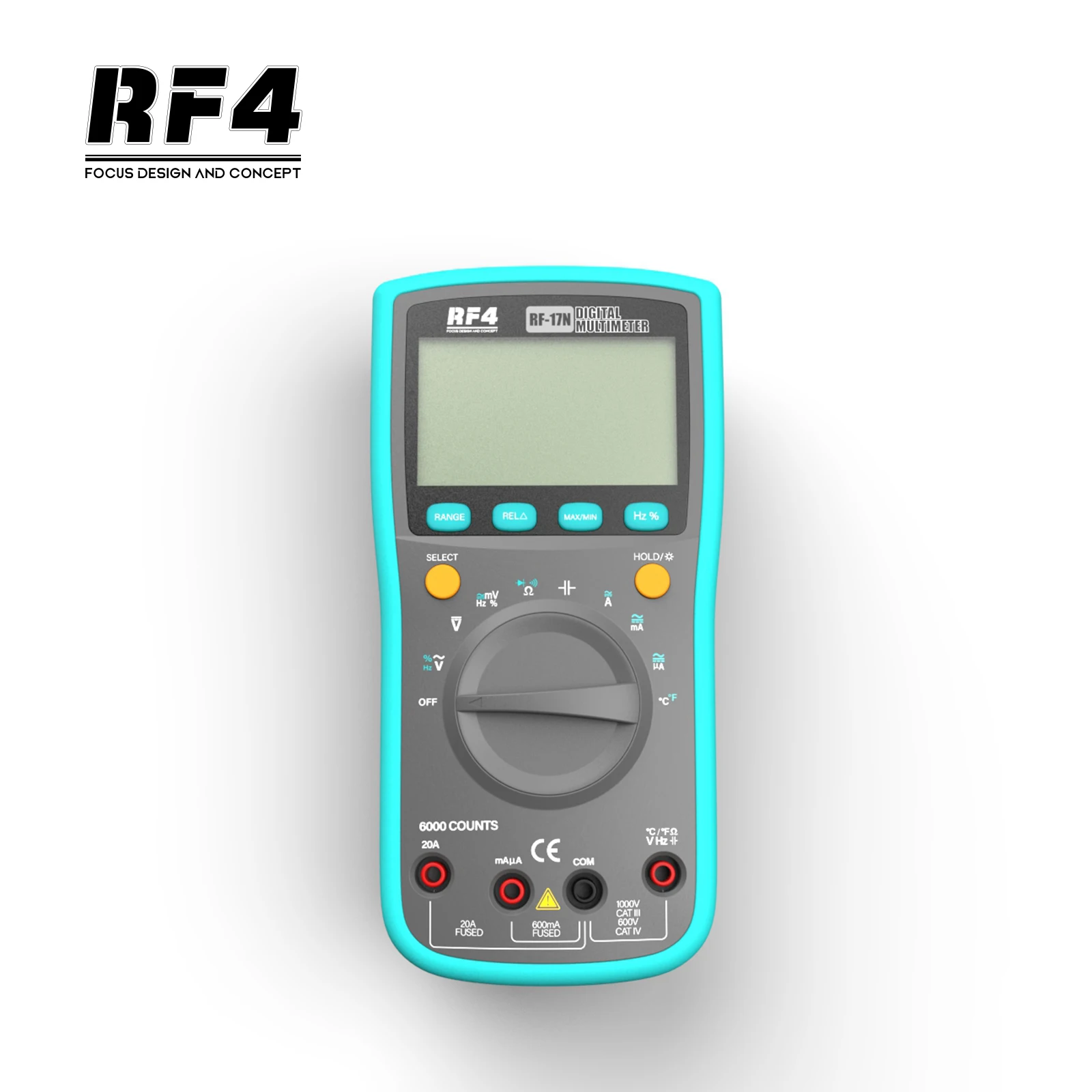

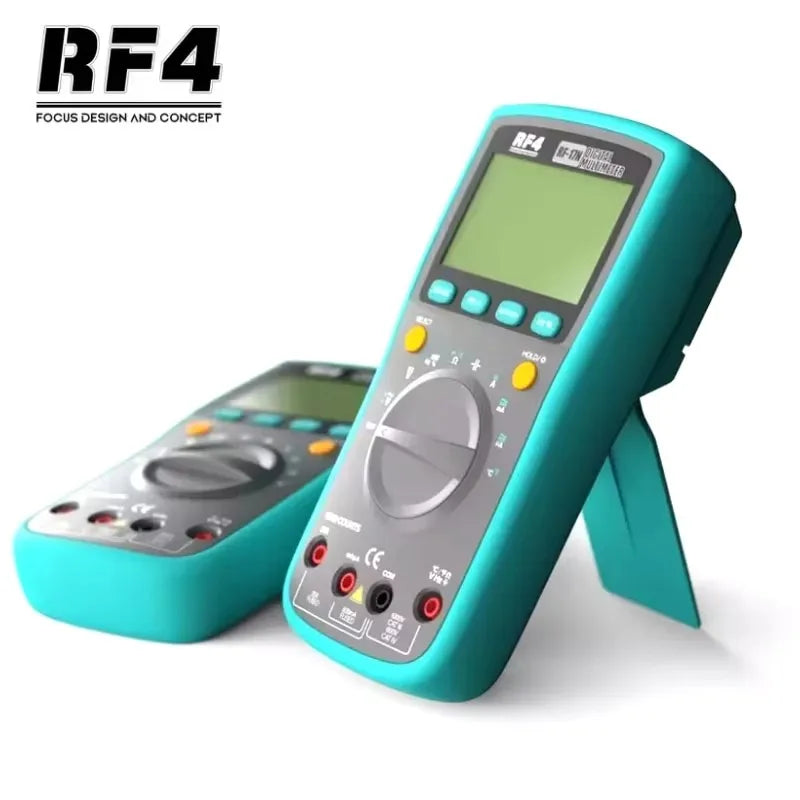

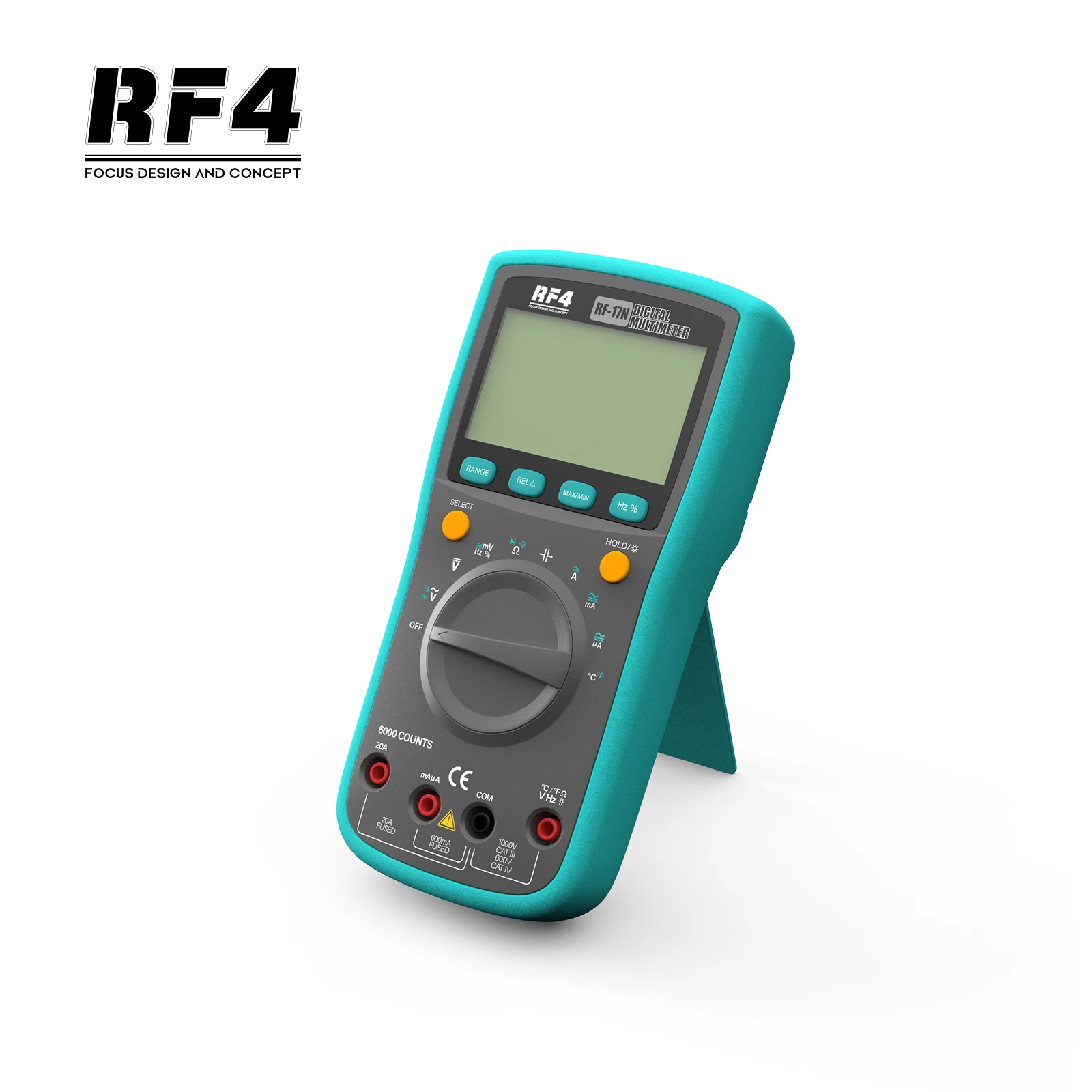

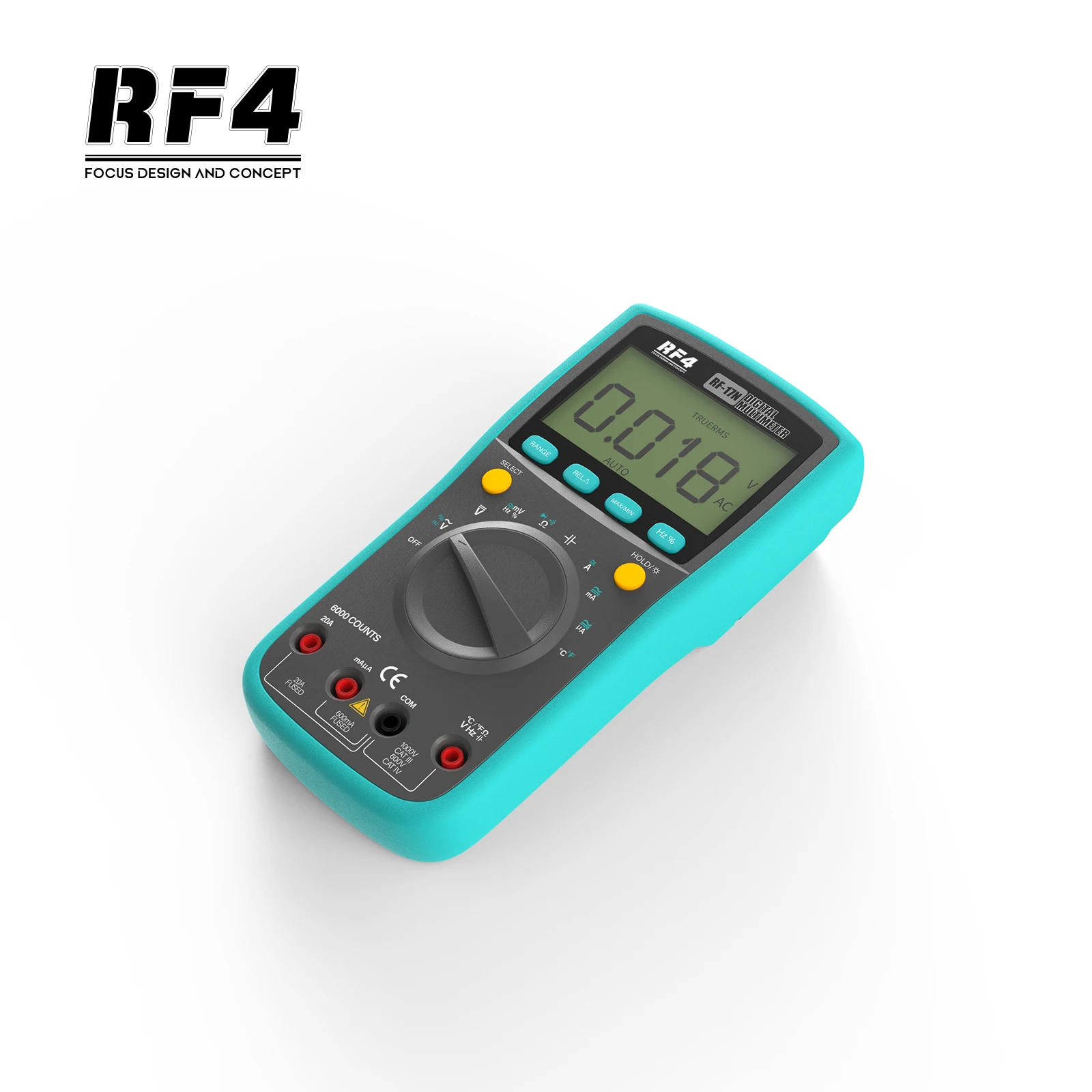

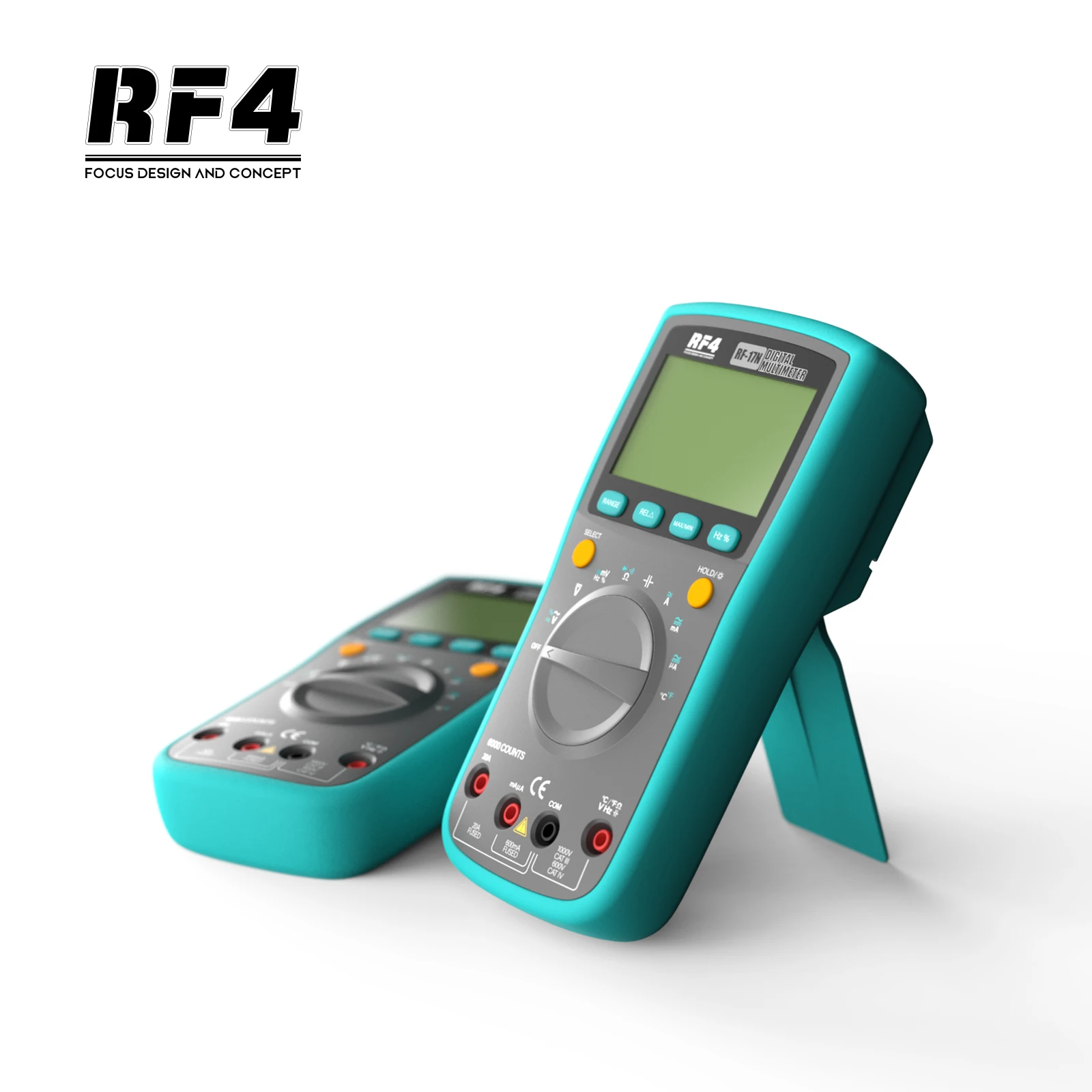

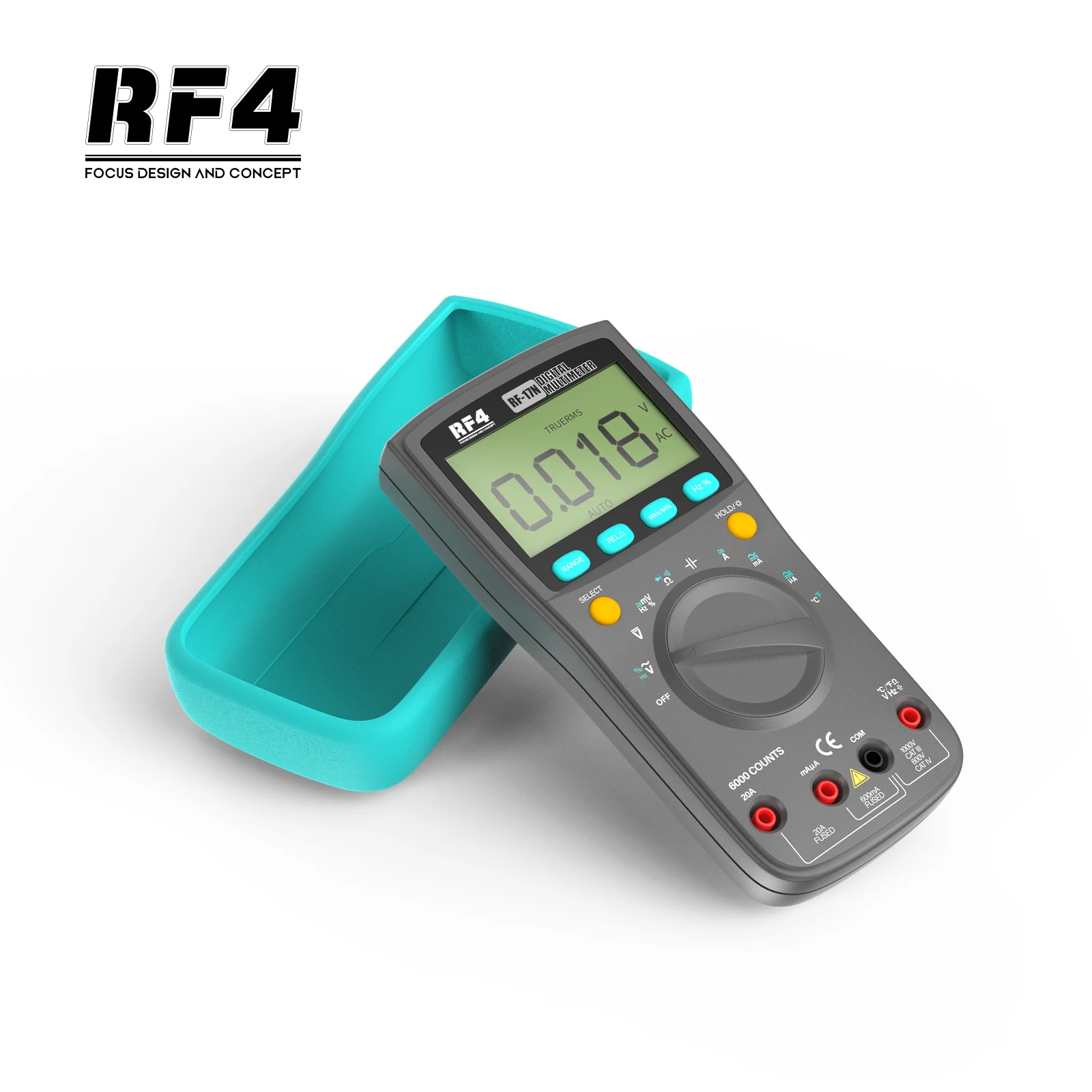

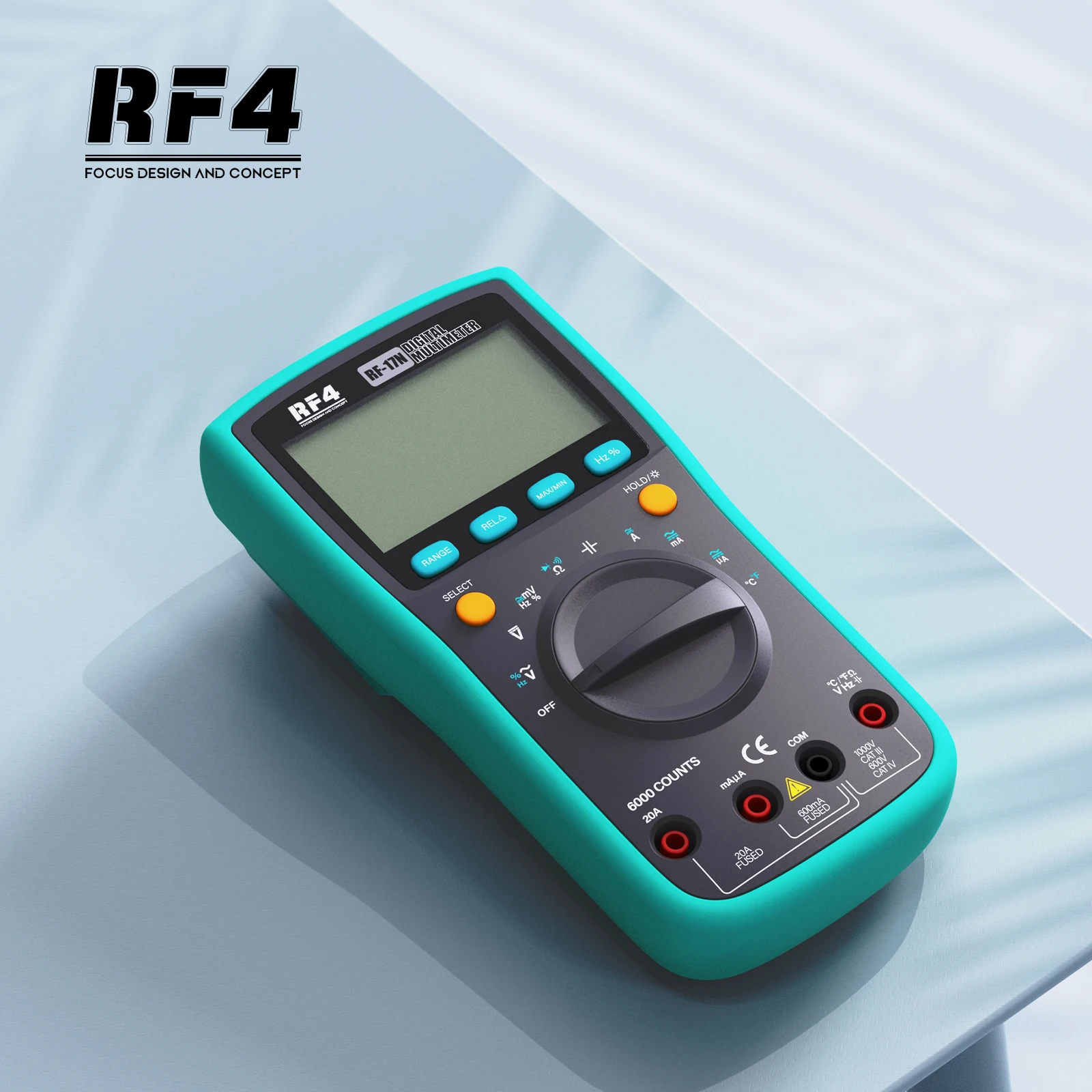

RF-17N multimeter lists AC/DC measurement, continuity and diode tests, a backlit display and 6000-count resolution.
Choosing the right option
Choose the measurement mode and connections for the circuit, and follow the meter limits. Disconnect circuit power for resistance and continuity checks; confirm probe and accessory inclusion.
Product details
Features:
LCD display with backlight.
Max display: 6000 Counts
Automatic polarity identification
Measurement mode: Double-integral style A/D transform
Measure AC/DC voltage, AC/DC current, resistance, capacitance, diode, continuity testing, frequency, etc
Specially designed with a temperature measurement function
Over range indication: OL
Low voltage indication
Auto power off
Sample rate: 3 times per second
Package includes:
1 x Multimeter(without battery)
2 x Test line
