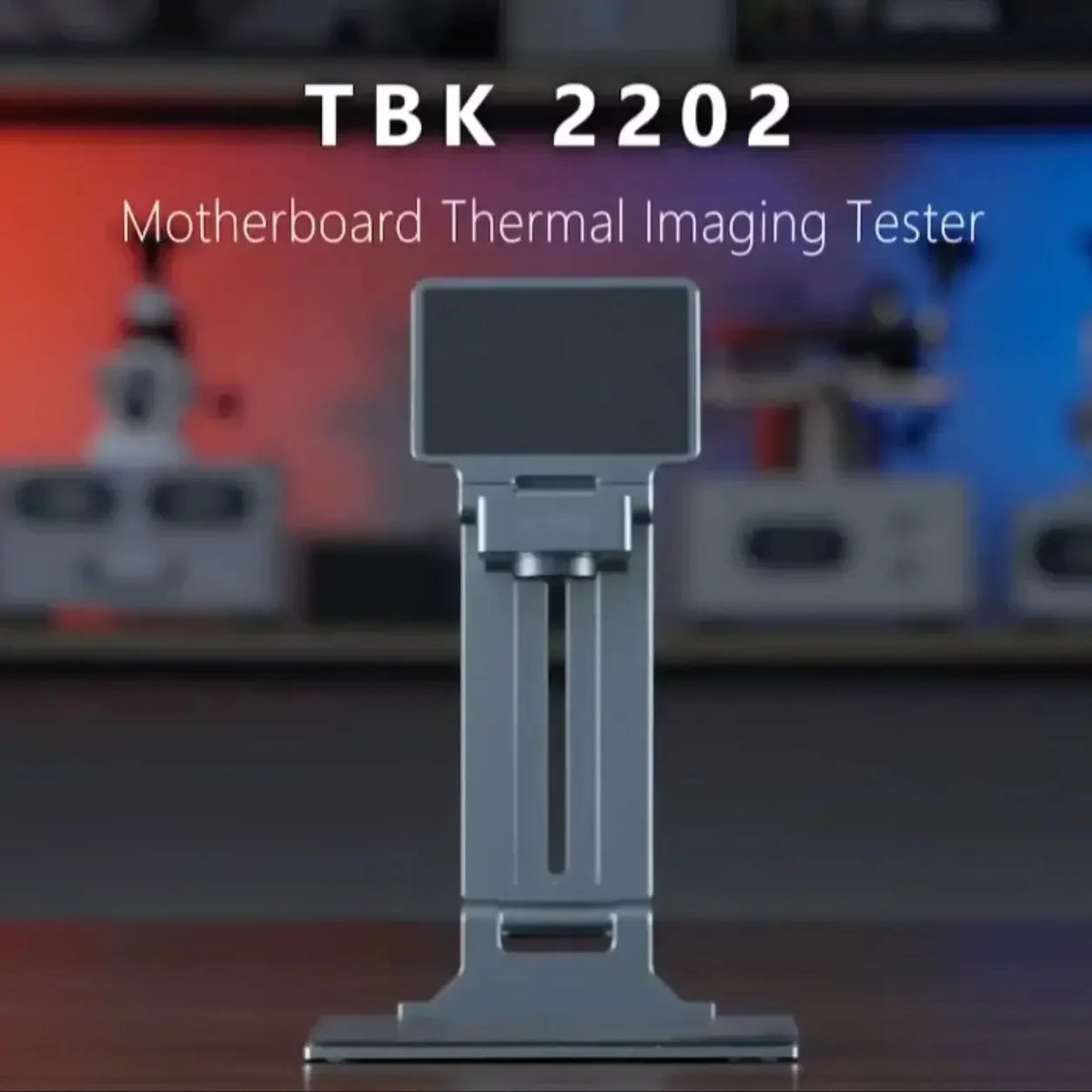

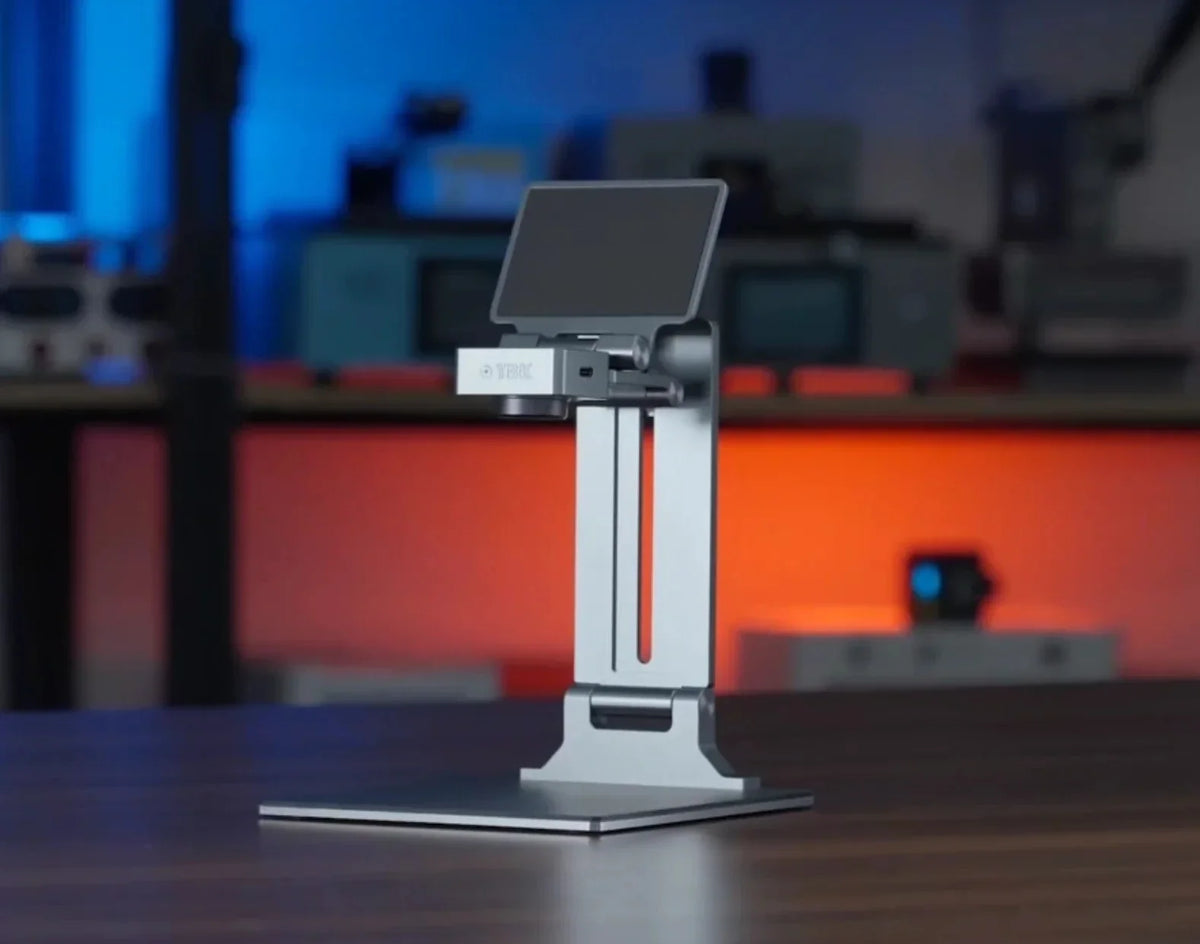

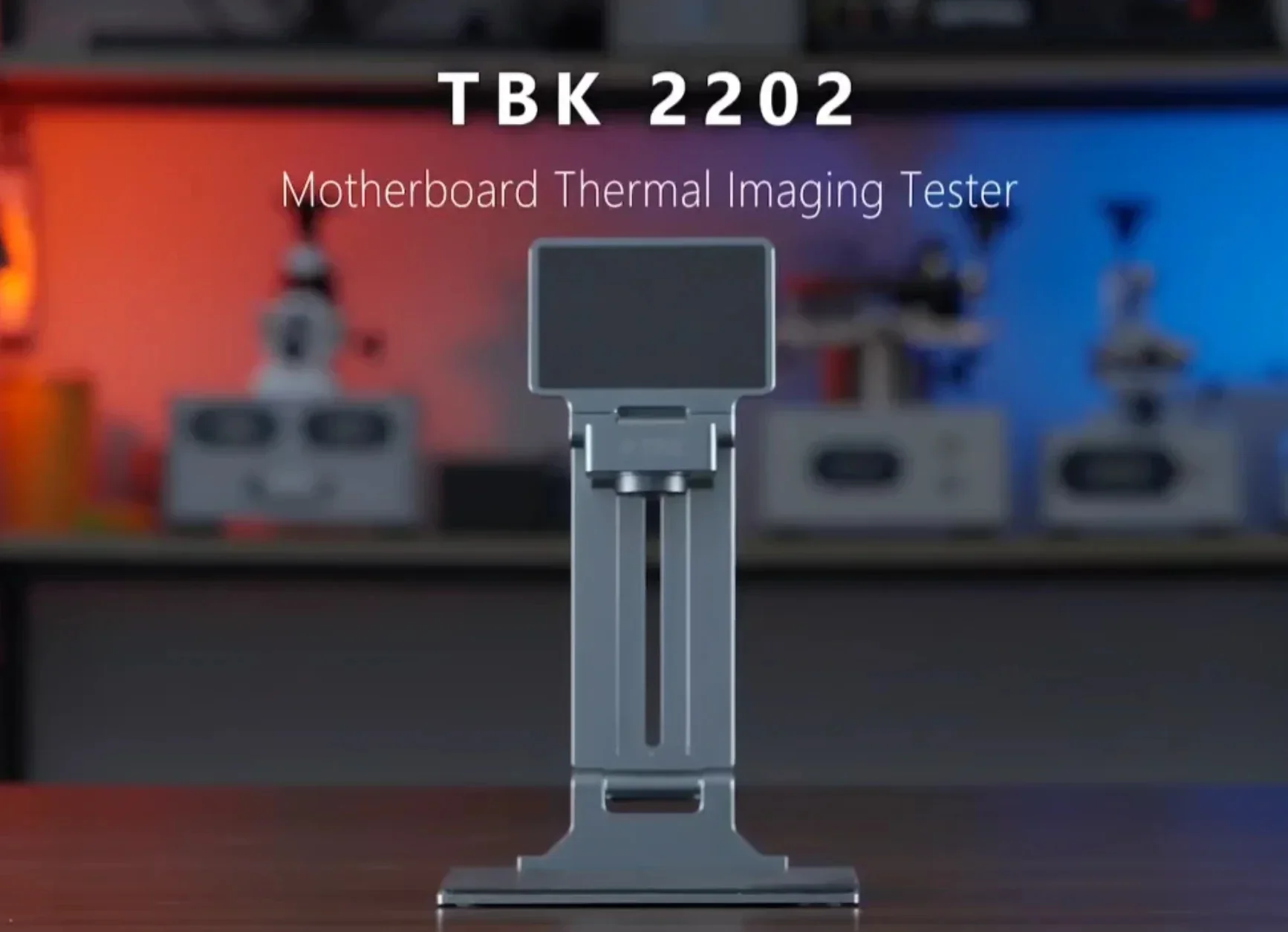

TBK 2202 Foldable PCB Infrared Thermal Imaging Analyzer

The TBK 2202 Foldable PCB Infrared Thermal Imaging Analyzer is a professional diagnostic tool engineered for fast and accurate motherboard troubleshooting. Designed specifically for cell phone, tablet, and electronics repair technicians, it rapidly detects abnormal heat dissipation, micro-leakage, and short-circuited components on high-density circuit boards, significantly cutting down diagnostic time.

Key Features

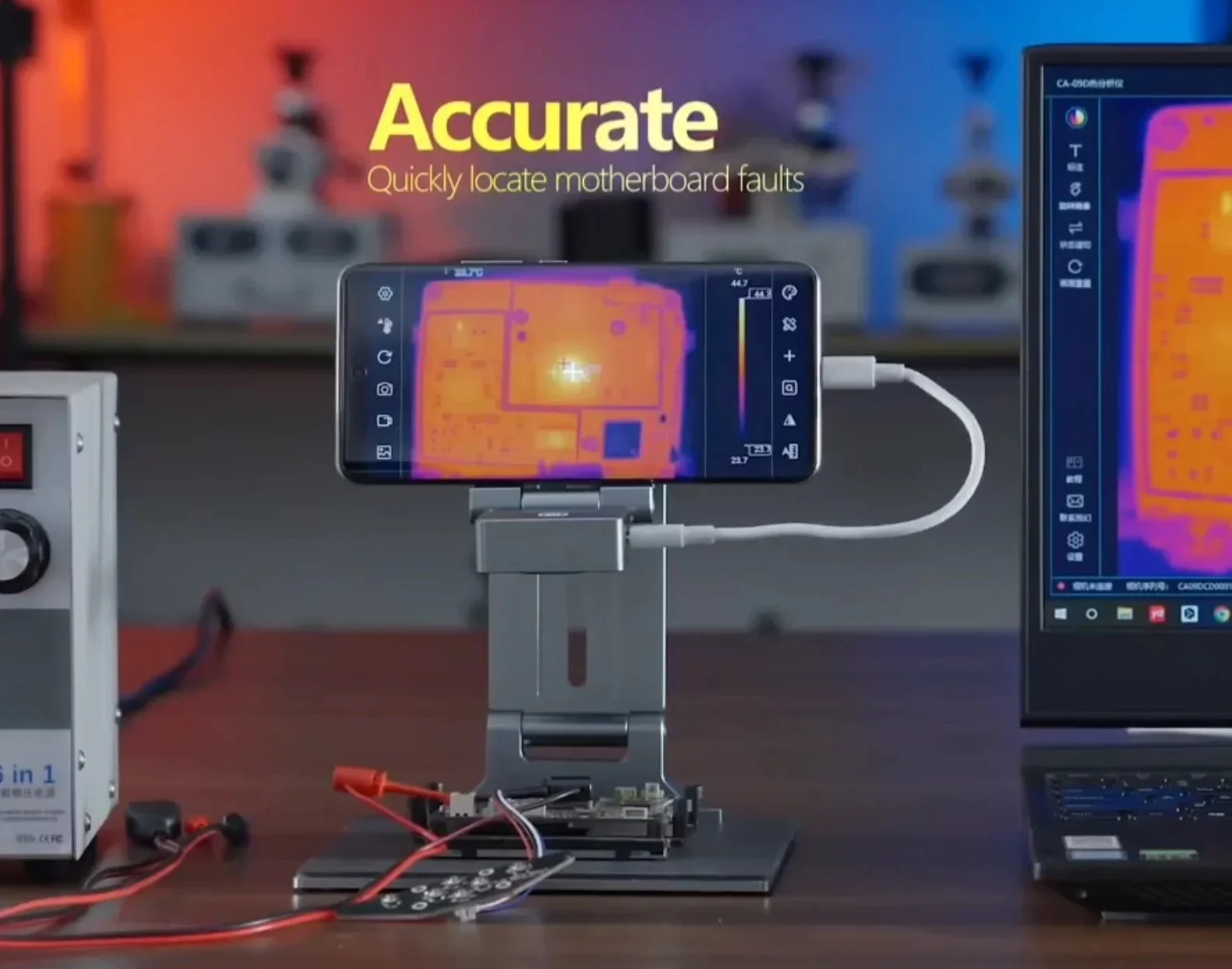

• Fast Fault & Short-Circuit Localization: Quickly pinpoints overheated ICs, shorted capacitors, and damaged components by visualizing temperature distribution in real time.
• Collapsible & Space-Saving Design: Features an adjustable folding stand that allows flexible height and focal adjustments while keeping your workbench organized.

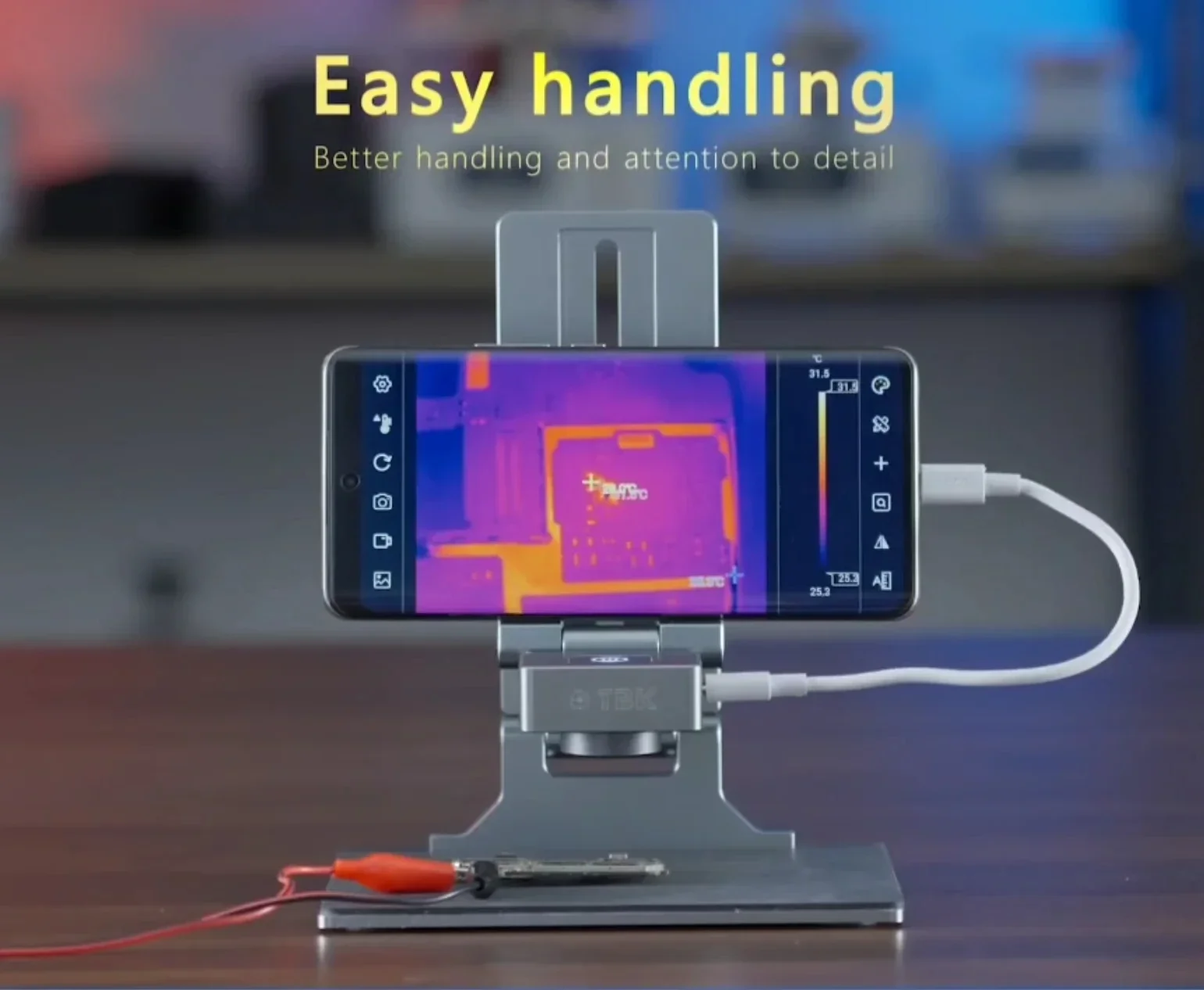

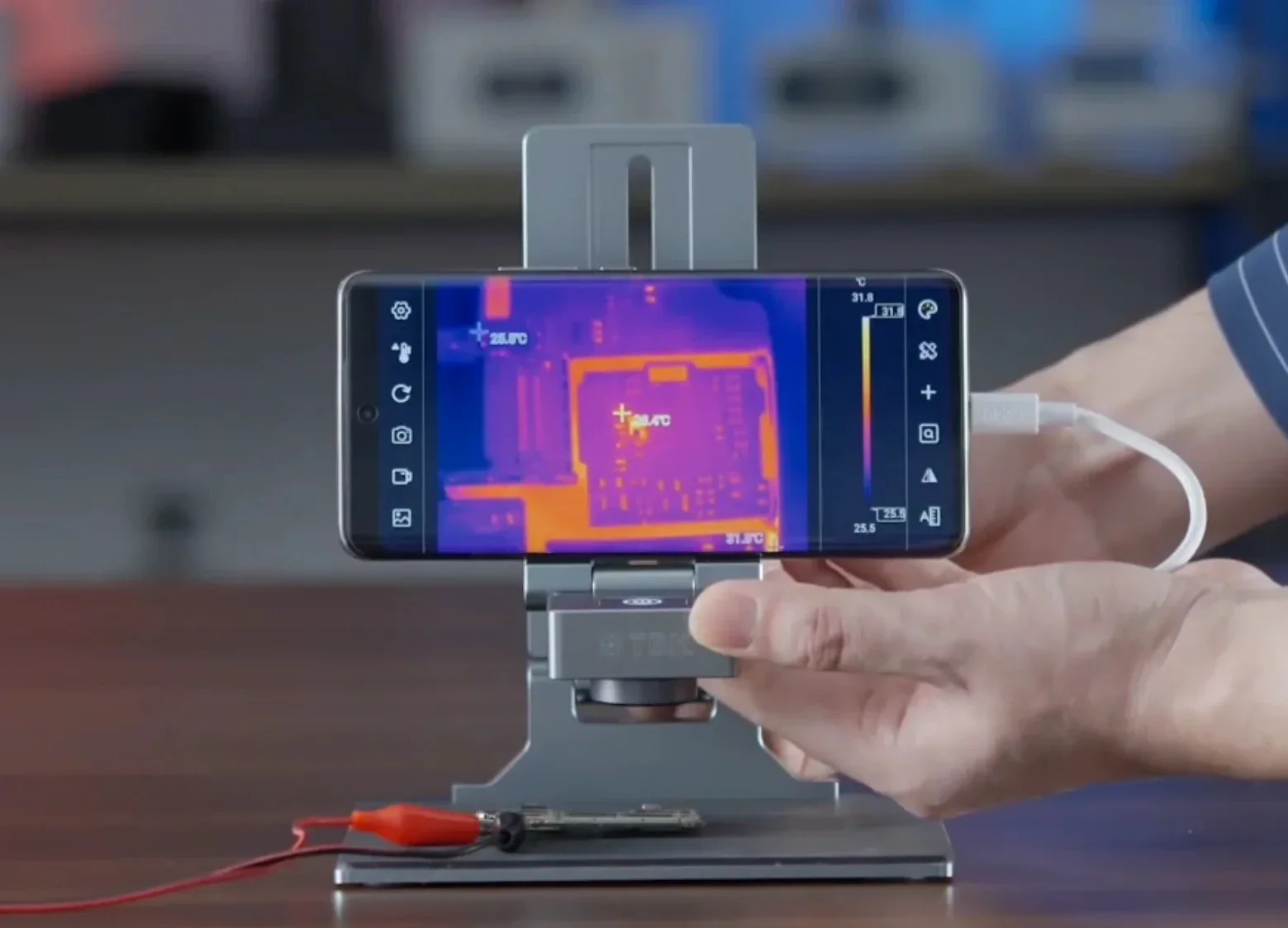

• High-Resolution Real-Time Analysis: Connects to a PC to display clear thermal maps, temperature gradient curves, and side-by-side component comparisons.
• Multi-Region Temperature Tracking: Supports point, line, and regional temperature monitoring with real-time temperature tracking for precise diagnostics.
• Universal Power Compatibility: Available in 110V and 220V configurations to suit various regional workshop standards.

Specifications & Compatibility

• Brand: TBK
• Model: 2202
• Product Type: Foldable Infrared Thermal Imaging Analyzer / Camera
• Input Voltage: 110V / 220V AC (Select corresponding model)
• Application: Mobile phone motherboard repair, PC/laptop circuit board diagnostics, micro-soldering inspection, and hardware testing
• Software Interface: Dedicated PC diagnostic software via high-speed USB data connection

Selection Guidance

• 110V Version: Suitable for regions using standard 110V–120V mains electricity (e.g., North America, Taiwan, Japan).
• 220V Version: Suitable for regions using standard 220V–240V mains electricity (e.g., Europe, UK, Australia, China, Southeast Asia).
• Note: Please verify your workshop voltage before ordering. Ensure test motherboards are safely connected in accordance with ESD and micro-soldering safety procedures.
